Forensic Imaging

Introduction Link to Introduction

In Digital Forensics, imaging involves creating an exact, bit-by-bit copy of digital storage media. This captures all data, including deleted and hidden files, while preserving the original data for thorough examination. The main goal is to create a verifiable copy for investigations and legal proceedings, ensuring the integrity of digital evidence.

This process is essential for maintaining the chain of custody by documenting the handling of digital evidence, demonstrating that the data has been preserved and not tampered with, which is critical for legal transparency.

Learning Objectives Link to Learning Objectives

• Understand the basics of the forensic imaging process.
• Explore different environment settings for imaging.
• Learn how to create a raw image from an attached device.
• Perform an integrity check of an image.

Prerequisites Link to Prerequisites

• Intro to Digital Forensics
• DFIR: An Introduction
• Linux Fundamentals 1
• Legal Considerations in DFIR

Preparation Link to Preparation

To start imaging a disk, you need to find the drive you want to copy and prepare it for the process. This involves making a duplicate of the drive’s data and checking that the copy is accurate. It’s crucial to do this in a way that keeps track of all actions taken.

Different operating systems have different ways of handling files, so you need the right tools for each. In this case, we’ll be using Linux to create the copy of the drive.

Write-Blockers Link to Write-Blockers

• Devices that prevent modifications to data on physical disks during analysis.
• Ensure that data can be read without altering original evidence by intercepting write commands between the disk and the OS.

Audit Trail Link to Audit Trail

• A chronological record of actions and events within a system for accountability and security.
• Documents each step for traceability, adaptable to legal or compliance requirements.
• Actions can be recorded manually or automatically, helping to preserve evidence and track activities.

If we are using bash, the history command can help us log our activity. It can be saved using a timestamp and preserved in a file. Below, we can observe a chart with some commands recommended to use during our session.

Another good practice is to log all sessions. This could be achieved with bash internals, but other easy-to-use software can achieve the same, like script, a UNIX tool present in several Linux distributions, or similar tools like ttyrec.

Accessing the File System Link to Accessing the File System

The method for accessing the file system is similar for all disks—whether they are physically or virtually attached to a Linux OS. After setting up your environment and logging your actions, you can use the df command to view the attached devices on the target machine.

Filesystem Information Link to Filesystem Information

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

user@tryhackme$ df
Filesystem     1K-blocks    Used Available Use% Mounted on
/dev/root       40581564 7240136  33325044  18% /
devtmpfs          995480       0    995480   0% /dev
tmpfs            1003808       0   1003808   0% /dev/shm
tmpfs             200764    1148    199616   1% /run
tmpfs               5120       0      5120   0% /run/lock
tmpfs            1003808       0   1003808   0% /sys/fs/cgroup
/dev/loop0         25600   25600         0 100% /snap/amazon-ssm-agent/7628
/dev/loop1         25856   25856         0 100% /snap/amazon-ssm-agent/7993
/dev/loop2        108032  108032         0 100% /snap/core/16574
/dev/loop3        106752  106752         0 100% /snap/core/17200
/dev/loop4         57088   57088         0 100% /snap/core18/2812
/dev/loop5         57088   57088         0 100% /snap/core18/2829
/dev/loop6         65536   65536         0 100% /snap/core20/2105
/dev/loop7         65536   65536         0 100% /snap/core20/2318
/dev/loop8         69632   69632         0 100% /snap/lxd/22526
/dev/loop9         94080   94080         0 100% /snap/lxd/24061
tmpfs             200760       0    200760   0% /run/user/1000
tmpfs             200760       8    200752   1% /run/user/114
tmpfs             200760       4    200756   1% /run/user/1001

Drives are attached as devices under the /dev directory. In the output above, the current disk used by the OS is listed under /dev/root. Our device is not mounted yet, and since it is a Virtual Disk attached to a loop interface, it will not appear using the command df. This is also common for physical disks when not directly attached.

We can still list block devices using the lsblk command with the -a option to list all devices, as shown below.

Forensic Imaging Link to Forensic Imaging

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

user@tryhackme$ sudo dc3dd if=/dev/loop10 of=example1.img log=imaging_loop10.txt

dc3dd 7.2.646 started at 2024-06-28 22:58:59 +0000
compiled options:
command line: dc3dd if=/dev/loop10 of=example1.img log=imaging_loop10.txt
device size: 2252800 sectors (probed),    1,153,433,600 bytes
sector size: 512 bytes (probed)
  1153433600 bytes ( 1.1 G ) copied ( 100% ),   13 s, 84 M/s

input results for device `/dev/loop10':
   2252800 sectors in
   0 bad sectors replaced by zeros

output results for file `example1.img':
   2252800 sectors out

dc3dd completed at 2024-06-28 22:59:12 +0000

The output from the lsblk -a command shows several loop interfaces and their details. Notably, loop10 is initialized with 1.1 GB, which matches the disk size needed for creating images. It's important to ensure there's enough space on the destination disk, which is xvda (40 GB, mounted at /).

To gather more information about the devices, you can use the losetup -l command to list the devices and their assigned paths, such as /dev/loop10.


user@tryhackme$ sudo losetup -l /dev/loop10
NAME        SIZELIMIT OFFSET AUTOCLEAR RO BACK-FILE                 DIO LOG-SEC
/dev/loop10         0      0         0  0 /home/ubuntu/example1.img   0     512

It is possible to acquire further information like the UUID of the image using the blkid with the interface as an argument, as demonstrated in the following example.

1
2

user@tryhackme$ sudo blkid /dev/loop10
/dev/loop10: UUID="1895de04-f9ee-4b8b-b49d-9ef55770073c" TYPE="ext4"

With the information above logged into our notes, we should proceed to create the disk’s image. Note that if we were using a physical disk, we could also use commands like hparn to get information about the manufacturer, serial number, and other required data.

What command can be used to list all block devices in Linux OS? Link to What command can be used to list all block devices in Linux OS?

Which bash command displays all commands executed in a session? Link to Which bash command displays all commands executed in a session?

Creating a Forensic Image Link to Creating a Forensic Image

Now that we have identified the device, we want to create an image. Let’s go ahead and copy this disk to a raw image file for further inspection. This could also be done to another disk if needed, which is a common practice, but in this case, we will do it to a local file in our system with the .img extension to identify the file as an image

As we recall from our previous task, there is a great variety of tools we can use to create images. We will use dc3dd in this example, an enhanced version of the UNIX command dd. Below, you can find a list of some common tools used to create images

To image a device with dc3dd: Link to To image a device with dc3dd:

• Use if=/dev/loop10 for the input device.
• Use of=example1.img for the output file.
• Include log=imaging_loop10.txt to save output logs.

Below, we can observe the command output of dc3dd using the parameters mentioned.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

user@tryhackme$ sudo dc3dd if=/dev/loop10 of=example1.img log=imaging_loop10.txt

dc3dd 7.2.646 started at 2024-06-28 22:58:59 +0000
compiled options:
command line: dc3dd if=/dev/loop10 of=example1.img log=imaging_loop10.txt
device size: 2252800 sectors (probed),    1,153,433,600 bytes
sector size: 512 bytes (probed)
  1153433600 bytes ( 1.1 G ) copied ( 100% ),   13 s, 84 M/s

input results for device `/dev/loop10':
   2252800 sectors in
   0 bad sectors replaced by zeros

output results for file `example1.img':
   2252800 sectors out

dc3dd completed at 2024-06-28 22:59:12 +0000

From the output above, we can confirm that the operation seemed to be successful and that we created a file of the same size, as shown below.

1
2

user@tryhackme$ ls -alh example1.img
-rw-r--r-- 1 root root 1.1G Jun 28 22:28 example1.img

Integrity Checking Link to Integrity Checking

Integrity checking in digital forensics imaging is vital to ensure that a forensic copy matches the original data. This is done using cryptographic hash functions like MD5, SHA-1, or SHA-256 to generate unique hash values for both the original and copied data. Comparing these hashes confirms that the evidence remains unaltered, which is essential for its reliability in legal contexts.

Tools like dc3dd can automatically calculate and verify hashes during the imaging process, enhancing assurance. Regular integrity checks throughout the investigation help maintain data integrity and preserve the chain of custody

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

user@tryhackme$ sudo lsblk -l
loop0    7:0    0  26.7M  1 loop /snap/amazon-ssm-agent/5163
loop1    7:1    0  24.9M  1 loop /snap/amazon-ssm-agent/7628
loop2    7:2    0 105.4M  1 loop /snap/core/16574
loop3    7:3    0 104.2M  1 loop /snap/core/17200
loop4    7:4    0  55.7M  1 loop /snap/core18/2812
loop5    7:5    0  55.7M  1 loop /snap/core18/2829
loop6    7:6    0  63.9M  1 loop /snap/core20/2105
loop7    7:7    0    64M  1 loop /snap/core20/2318
loop8    7:8    0  67.9M  1 loop /snap/lxd/22526
loop9    7:9    0  91.9M  1 loop /snap/lxd/24061
loop10   7:10   0   1.1G  0 loop
loop11   7:11   0   1.1G  0 loop /mnt/example1
xvda   202:0    0    40G  0 disk
xvda1  202:1    0    40G  0 part /

We can observe that the device is still listed in /dev/loop10 Let’s ensure our imaging process was successful. To do that, let’s calculate the MD5 hash of the image we created, example1.img, and let’s do the same for the device/dev/loop10. The results should match.

1
2
3
4
5
6

user@tryhackme$ sudo md5sum example1.img
483ca14c7524b8667974a922662b87e8  example1.img


user@tryhackme$ sudo md5sum /dev/loop10
483ca14c7524b8667974a922662b87e8  /dev/loop10

As shown above, the calculated hash indeed matches, passing the integrity check for this image we created. Thus, we can confirm that the imaging process has been successful through hashing.

What is the MD5 hash of the image “exercise.img” located in /home/analyst/? Link to What is the MD5 hash of the image “exercise.img” located in /home/analyst/?

start the machine in home, -> sudo md5sum exercise.img

Other Types of Imaging Link to Other Types of Imaging

It is worth noting that other types of imaging procedures can be performed, not only on disk devices. These can include:

Once we have an image, we can also verify that the image is working and can be used to inspect it; for that, we could mount the image to verify the process is complete correctly. Let’s go ahead and mount the image we created, example1.img.

As we observed before, our disk assigned to the loop interface loop10 is not mounted as the command df displays.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

user@tryhackme$ df -h
Filesystem      Size  Used Avail Use% Mounted on
/dev/root        39G  7.9G   31G  21% /
devtmpfs        973M     0  973M   0% /dev
tmpfs           981M     0  981M   0% /dev/shm
tmpfs           197M  1.2M  195M   1% /run
tmpfs           5.0M     0  5.0M   0% /run/lock
tmpfs           981M     0  981M   0% /sys/fs/cgroup
/dev/loop0       27M   27M     0 100% /snap/amazon-ssm-agent/5163
/dev/loop1       25M   25M     0 100% /snap/amazon-ssm-agent/7628
/dev/loop2      106M  106M     0 100% /snap/core/16574
/dev/loop3      105M  105M     0 100% /snap/core/17200
/dev/loop4       56M   56M     0 100% /snap/core18/2812
/dev/loop5       56M   56M     0 100% /snap/core18/2829
/dev/loop6       64M   64M     0 100% /snap/core20/2105
/dev/loop7       64M   64M     0 100% /snap/core20/2318
/dev/loop8       68M   68M     0 100% /snap/lxd/22526
/dev/loop9       92M   92M     0 100% /snap/lxd/24061
tmpfs           197M     0  197M   0% /run/user/1000
tmpfs           197M  8.0K  197M   1% /run/user/114
tmpfs           197M  4.0K  197M   1% /run/user/1001

Let’s mount it using the mount command

• First, create a mount point directory /mnt/example1 with the command sudo mkdir -p /mnt/example1
• Then, use the command sudo mount -o loop example1.img /mnt/example1 to mount the image
• After that, we can verify by exploring the mount point we created using the ls command.

1
2

ls /home/practical/
flag.txt  lost+found  testpractical01  testpractical02  testpractical03  testpractical04  testpractical05

Mount the image “exercise.img” located in the analyst home directory folder. What is the content of the file “flag.txt” located within exercise.img? Link to Mount the image “exercise.img” located in the analyst home directory folder. What is the content of the file “flag.txt” located within exercise.img?

!Mounting](/Frosti/public/main/mount.png)

Practical Exercise Link to Practical Exercise

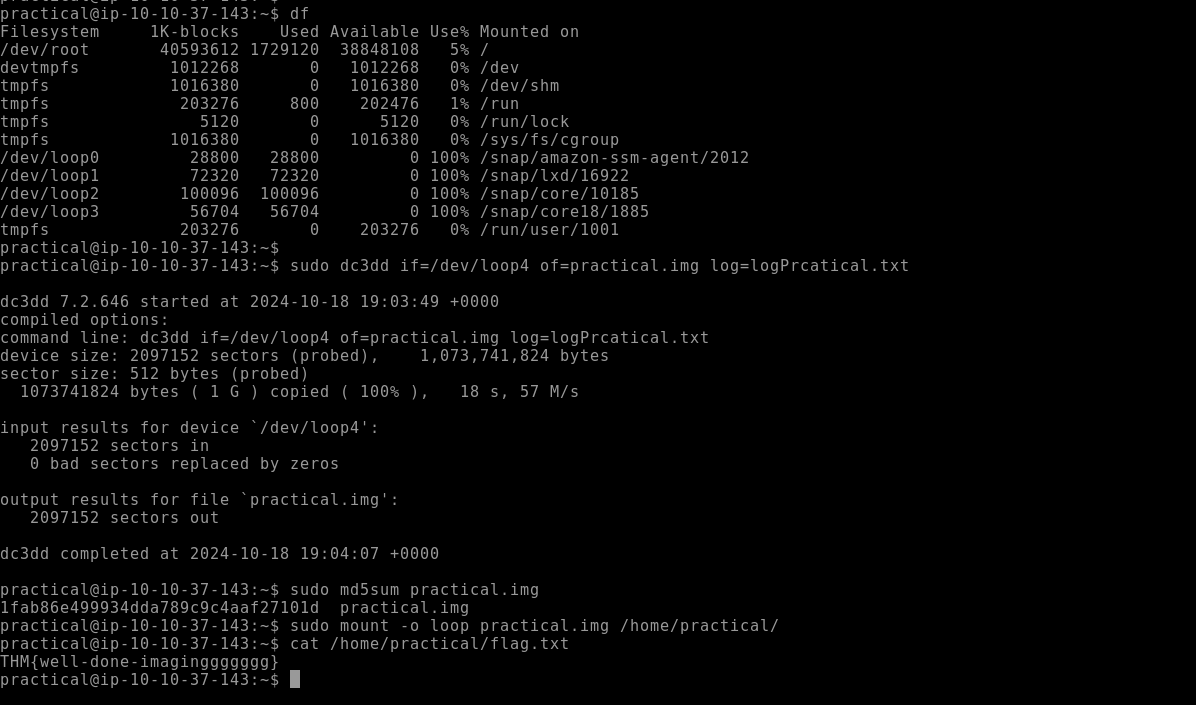

Create an image of the attached 1gb loop device. What is the MD5 hash of the image? Link to Create an image of the attached 1gb loop device. What is the MD5 hash of the image?

Mount the image from the 1 GB loop device. What is the content of the file “flag.txt”? Link to Mount the image from the 1 GB loop device. What is the content of the file “flag.txt”?

in image above

Conclusion Link to Conclusion

In this room, we learned the basics of forensic imaging, defining the main concepts and performing tasks that will put us in practical scenarios where we performed imaging of devices, mount, and check their integrity through hashing algorithms. You can learn more about forensic imaging or more about Linux forensics in the rooms below.

• Linux Forensics
• Linux Fundamentals 2
• Linux Logs Investigation
